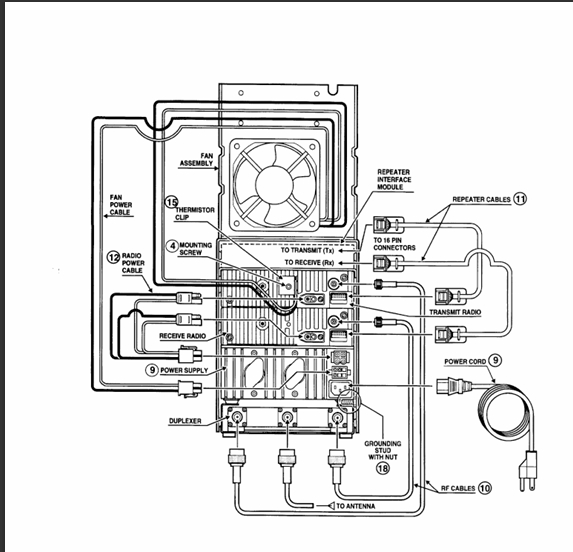

| Motorola GR300 UHF Repeater |
| Transmit: | Motorola GM300 Mobile 40Watts Out | | Output Frequency: | 462.575 MHz | | Reserve: | Motorola GM300 Mobile | | Input Frequency: | 467.575 MHz | | CTCSS/DCS: | 114.8 Hz | | Interface Unit:Model: | Motorola Zetron ZR310 Community Repeater PanalHLN8388 | | CWID: | WPRV616 | | Duplexer: | Celwave w/N Connectors UHF 450-470MHz 50Watt | | TOT: | 90 Seconds | | Time Delay: | 1.5 Seconds |
 | | Tran-Max BF-406 UHF Base Station Antenna |
| Frequency Range: | 460 ~ 470MHz, 430 ~ 490MHz (70 cm) | | Length: | 1.7m | | Type: | 3X5/8 wave length | | Connector: | UHF Female SO-239 | | Power Capacity: | 200 Watts | | Impedance: | 50 Ohm | | Gain: | 6.5dB | | VSWR: | Less than 1.5:1 | | DC Ground: | Yes | | Wind load: | 60m/sec | | Mast dia. accepted: | 30-62m/m | | Polarization: | Vertical |
 | Tower & Antenna Specifications |
| Rohn Tower: | Antenna is 65 feet on a 50 foot tower |
TOWER OF POWER | Pyramid: | Model: PS-46KX 40AMP |
|
